FE180

FE180

Special Offers

Nows the time
0.9%1APR
On All 2017 Models Through September 30

Overview

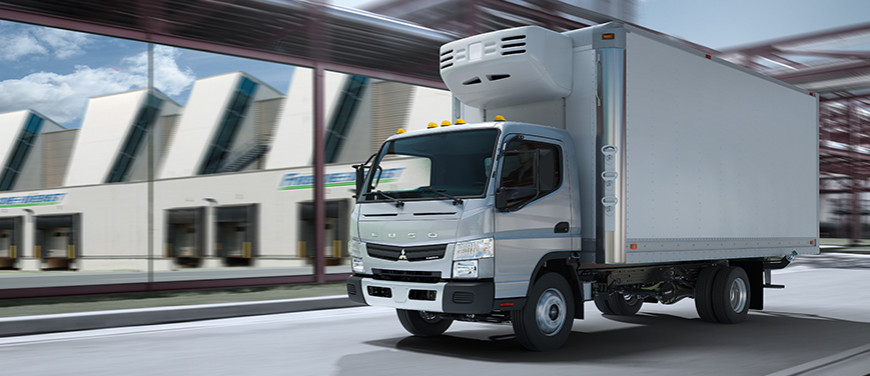

The agile heavyweight. The FUSO FE180 will change the way you think about keeping your business moving. Featuring an innovative two-stage turbocharged, low-emissions diesel engine and dual-clutch automatic transmission, you’ll benefit from increased fuel savings, enhanced efficiencies, higher payload capacity, and improved driver productivity. Add to this our 5-year/175,000-mile powertrain limited warranty and you get the longevity and durability you can expect from FUSO.

With the largest payload in our lineup, the FE180 handles heavy-duty hauling and intra-city transport with ease.

Safety

  • Crush bar in each door
  • Energy-absorbing steering column
  • Daytime running lights
  • Dual-caliper disc brakes with ABS (all wheels)
  • Covered open-grate entry steps
  • Forward swing doors for safer entry/exit
  • High visibility halogen headlamps

Appearance

Cab Colors

  • Arcadia Silver
  • Natural White
  • Jupiter Green
  • Mars Red
  • Shannon Blue
  • Solid Black

Fabric Style

Blue Cloth Blue Cloth

Specifications

Download Spec Sheet
Weight Ratings
GVWR/GCWR
17,995 lb./25,710 lb.
GAWR (front/rear)
6,390 lb./12,700 lb.
Curb Weight
Base model
5,505 lb. (est.)
Body/Payload
Estimated max.
12,490 lb. (see dealer for details)
Dimensions
Wheelbase
110.2" (C)133.9" (E)151.6" (G)169.3" (H)187.0" (K)
Overall length (cab/chassis)
204.9"228.5"246.3"264.0"281.7"
Usable cab to rear axle
81.2"104.9"122.6"140.3"158.0"
Min and max body sizes
10' to 20' (22' with FUSO review/approval)
Engine
Model
FUSO 4P10-T5 Diesel
Type
DOHC, 4-cylinder, 4-stroke cycle, water-cooled, turbocharged, intercooled diesel with 4 valves per cylinder, with high-efficiency electrically-engaged cooling fan
Displacement
183 cu. in. (3.0 L) Electronically controlled DPF/SCR system with OBD
Max. output (SAE, gross)
161 hp @ 3,400 rpm
Max. torque (SAE, gross)
295 lb.-ft. @ 1,300 rpm
Air Cleaner
Type
Dry paper element with snorkel
Transmission
Standard
M038S6 DUONIC® 6-speed dual-clutch automatic
Axle Capacity
Front/Rear
6,835 lb./13,230 lb.
Final Reduction Gear
Type
Single-reduction hypoid
Ratio
6.166
Top Speed, Est.
Diff
71 mph
Turning Diameter
Minimum, by wheelbase
34.1'40.0'44.6'49.5'54.1'
Tires (Premium)
Configuration
Single front, dual rear
Size/Type
215/75R17.5 12PR LR:F hwy front/traction rear
Wheels
Size/Configuration
17.5" x 6"/6-lug
Steering
Type
Ball-nut type with integral-type hydraulic power boost
Adjustments
Tilt/telescoping steering column with steering lock
Suspension
Front
Laminated leaf springs with shock absorbers and stabilizer bar
Rear
Laminated leaf springs with shock absorbers and stabilizer bar
Brakes
Service
Dual-caliper discs, vacuum/hydraulic-type with ABS
Parking
Drum/driveline, internal expanding shoe
Exhaust
Electrically actuated
Frame
Type
Ladder/straight
Section modulus
7.08 cu. in. per rail
Yield strength
56,565 psi
RBM per rail
400,410 lb.-in.
Height/Width
32.8"/33.5"
Environmental durability
Premium anti-corrosion package for frame and frame-mounted components
Fuel Tank
Capacity/Location—std.*
30 gal./in-frame, aft of rear axle
Capacity/Location—opt.**
33 gal./left side
Def Tank
Capacity/Location
3.2 gal./right side
Battery
Type/Capacity
Two 12-volt, maintenance-free/750 CCA
Electrical
Starter/Alternator
12-volt/12-volt, 140A output
Cold Weather
Starting/Operation
Ceramic glow plugs/PCV heater, DEF tank heater
Convenience / Assurance
Windows/Door locks
Power-operated, one-touch up and down driver’s side window
Cruise control
Standard (programmable)
Entry
Keyless, with driver/assistant door lock control
Radio
Clarion AM/FM/CD, hands-free Bluetooth® (optional)
Air conditioning
Standard factory-installed
Idle Limit System (ILS)—opt.
Automatic engine shutdown of stationary vehicle, in Park or Neutral, after achieving normal operating temperature with dealer-programmed limit of 3, 5 or 10 minutes
Collision avoidance system
Mobileye® 6 Series (optional)
  • 1Not all customers will qualify for the financing offer. Actual rates, down payment and program eligibility will be determined by Daimler Truck Financial (DTF) or Hitachi Capital America (HCA) based upon creditworthiness of the customer. New DTF or HCA credit customers must be approved by September 30, 2017, with transaction funded by October 13, 2017. See your DTF or HCA representative for complete details.
  • *rear fuel tank is not designed for use as a primary or auxiliary in any dual tank system
  • **133.9", 151.6", 169.3", 187.0" wb
